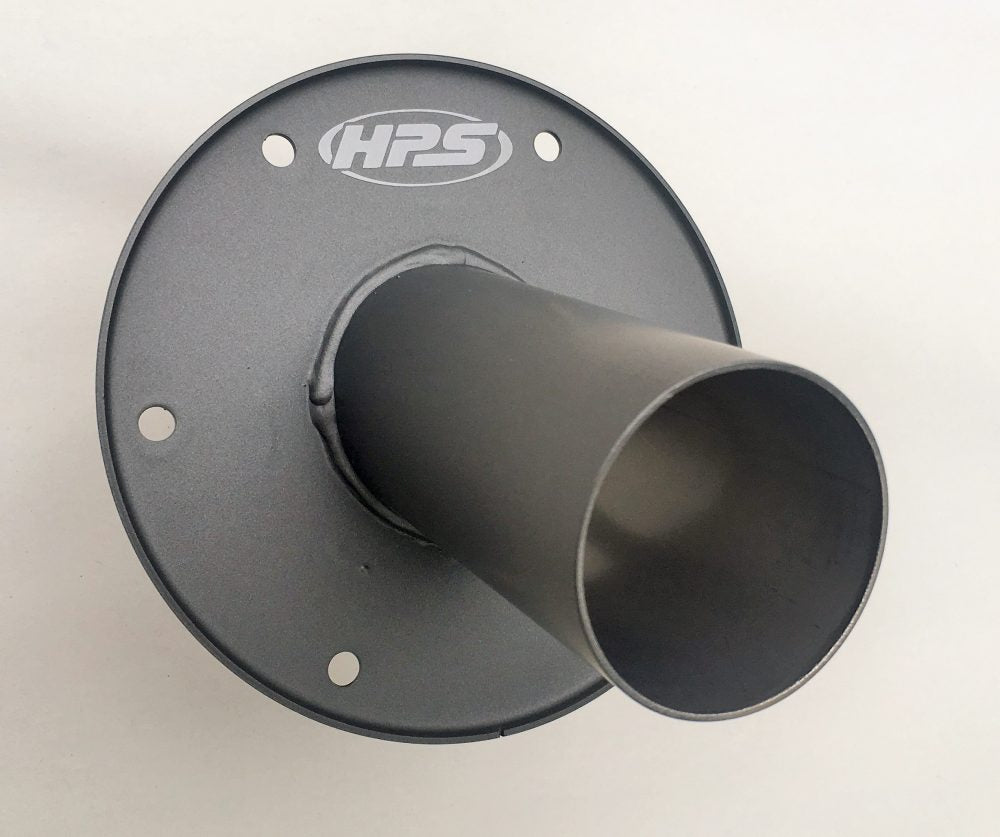

The NEW HPS Performance Insert/spark arrestor is the easiest and most affordable performance you can add to your Yamaha YXZ1000R Side x Side. Constructed with a 100% forest approved non-corrosive, high quality 304L Stainless Steel spark arrestor screen allowing you to not only add over +4 HP to your machine but keep you completely responsible and legal as you continue to enjoy your favorite recreational areas. With 60% more flow through your stock exhaust and more performance sound there is no need to buy loud slip-ons or expensive full exhaust systems. Coated in our Platinum Lite Ceramic for heat retention and a rich metallic finish. Combine the AFR+ with the HPS Performance Insert and instantly gain an additional +2 HP, total of +6 HP, increase over stock.

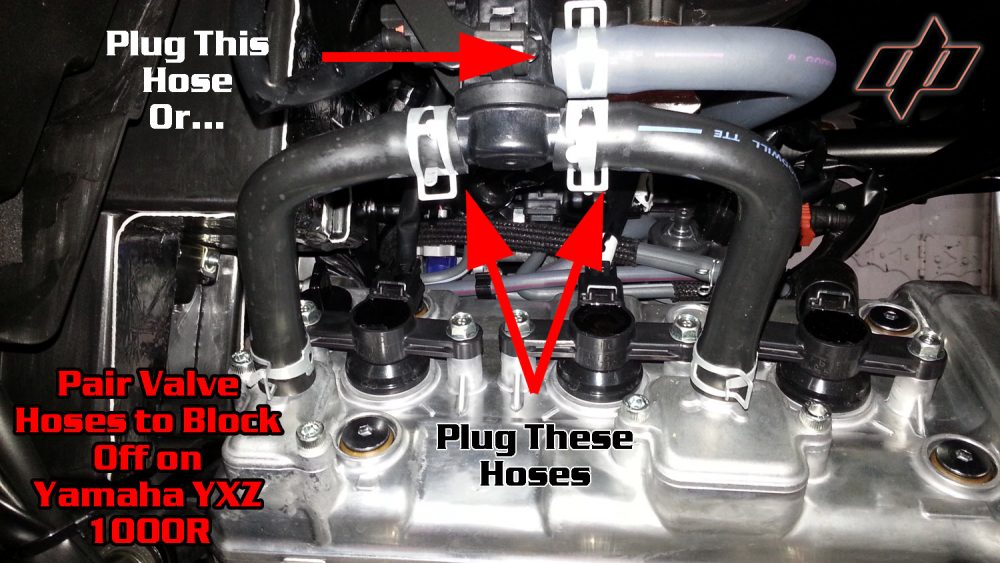

NOTE: Plugging the exhaust smog vents on engine valve cover is recommended/necessary when doing any performance mods on the YXZ.
The AFR+ brings together two technologies within one system to make it the most powerful, user-friendly tuning device on the market. AFR+ combines an EFI controller with a wideband O2 sensor and AFR gauge to provide a user instant fuel trimming ability and feedback about their vehicles state of tune.
The AFR+ can handle ALL your fueling needs or COMPLIMENT ECU downloads or already installed EFI controllers. The AFR gauge allows you to KNOW exactly how well your tune-up is performing. The EFI fueling allows you to CONTROL any necessary fine tuning without spending more money or valuable time.
BETTER FUEL MILEAGE - The AFR+ pays for itself! SAVING YOU $$$
The information the AFR gauge displays is all you need to get the best fuel mileage out of your vehicle. The AFR+ can be used alone or in combination with your existing fuel controller or mapping software. With a low retail cost, the AFR+ can pay for itself in ONLY 3500 miles.
BETTER HORSEPOWER and TORQUE
The AFR+ allows your vehicle to be optimized to get the best horsepower and torque for the current modifications.
FUEL INJECTION CONTROL - AUTO-TUNE or FUEL TRIMMING
The AFR+ has built in a piggy-back EFI control system. A piggy-back EFI control system is one where it does not replace the stock ECU, but rather monitors the signals to the injectors and makes fuel adjustments based on the mode settings. The AFR+ can be computer programmed into an auto-tune or a fuel trimmingoperation mode. The auto-tune mode instantly makes adjustments to the fuel curve based on the wideband O2 sensor input to match the user's desired AFR value. The fuel trimming mode allows a user to make instant changes to the duration of time the fuel injectors are fired. The AFR+ features a push button interface on the gauge allowing for quick fine tuning by the end user for each operation mode.
The AFR gauge provides the user an analog view of air/fuel ratio values between 10 and 16. The AFR gauge is the standard size of 2-1/16 inches in diameter to allow for multiple 3rd party mounting systems to be used. A self-adjusting back lighting display allows the AFR values to clearly be visible for both daytime and nightime riding.
WIDEBAND CONTROLLER - BOSCH CHIP and O2 SENSOR
The wide-band controller for the AFR+ uses a Bosch micro-controller for interpreting the data from the wide-band Bosch O2 sensor. The AFR+ uses the Bosch O2 sensor part number 17018 and can be found at most local NAPA stores.

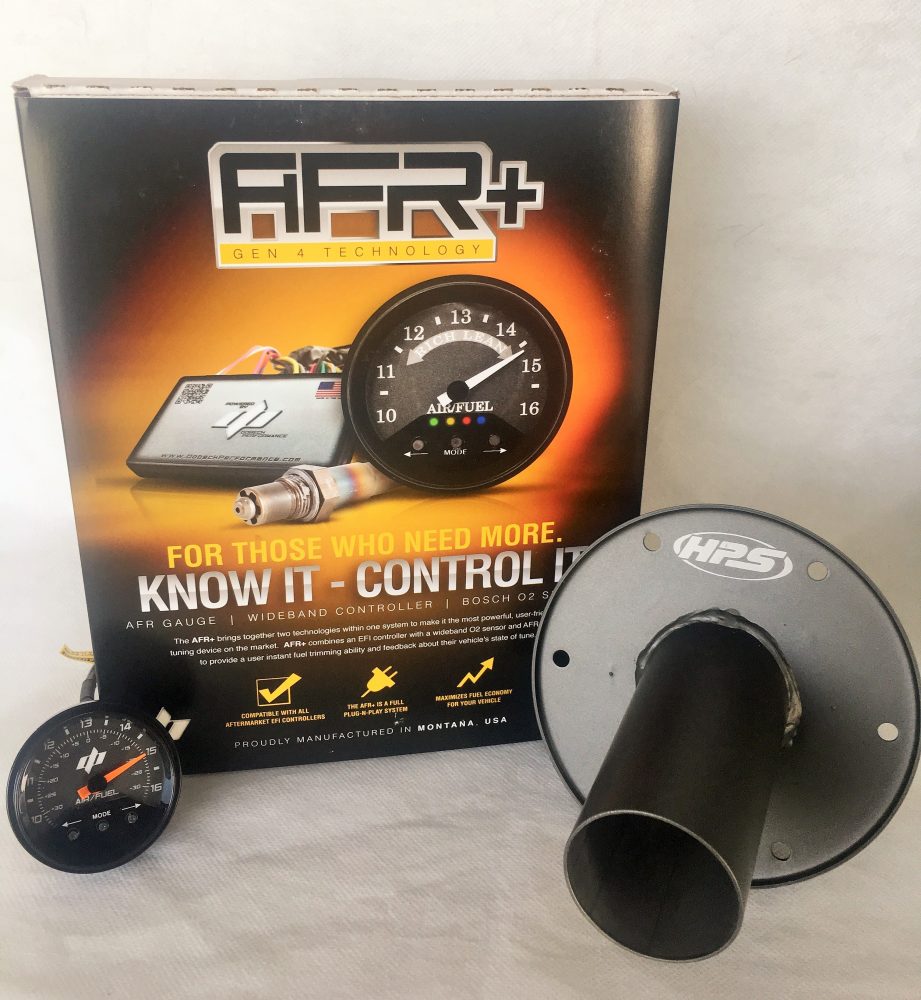

|AFR+ KIT CONTENTS:|
|DP AFR Gauge - View All Styles|
|Bosch LSU 4.2 O2 Sensor #17018 - View Picture|
|DP Dash Mounting Hardware - View Picture|
|DP Wideband - 2CHST GHERL|
|DP Battery 44 in Sub-Harness|

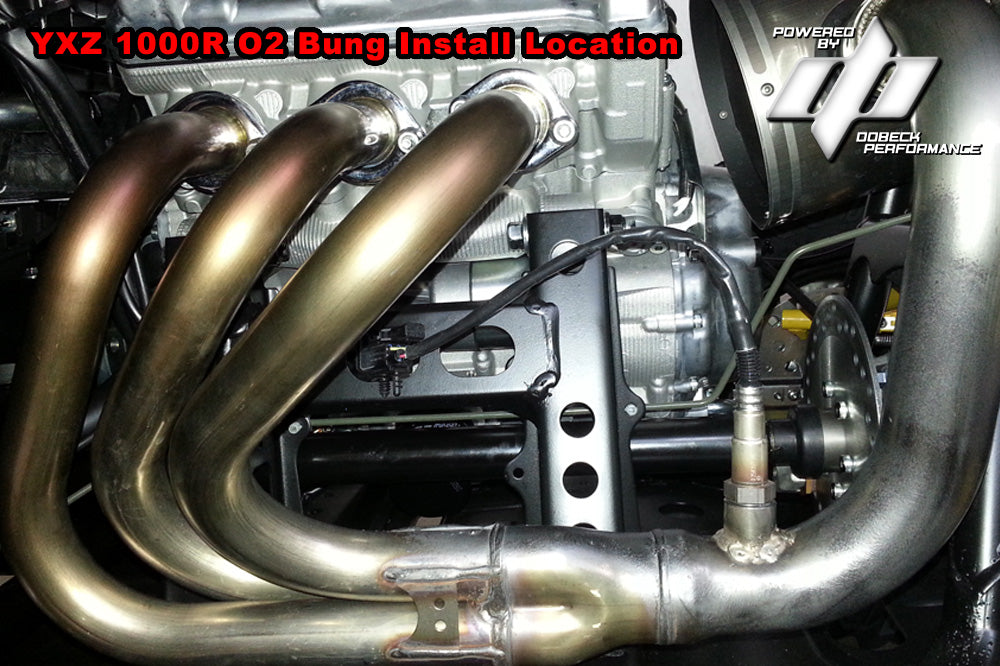

|DP Flat O2 bung - View Picture|
|Production Code: ADJUSTABLE AFR CODE|
